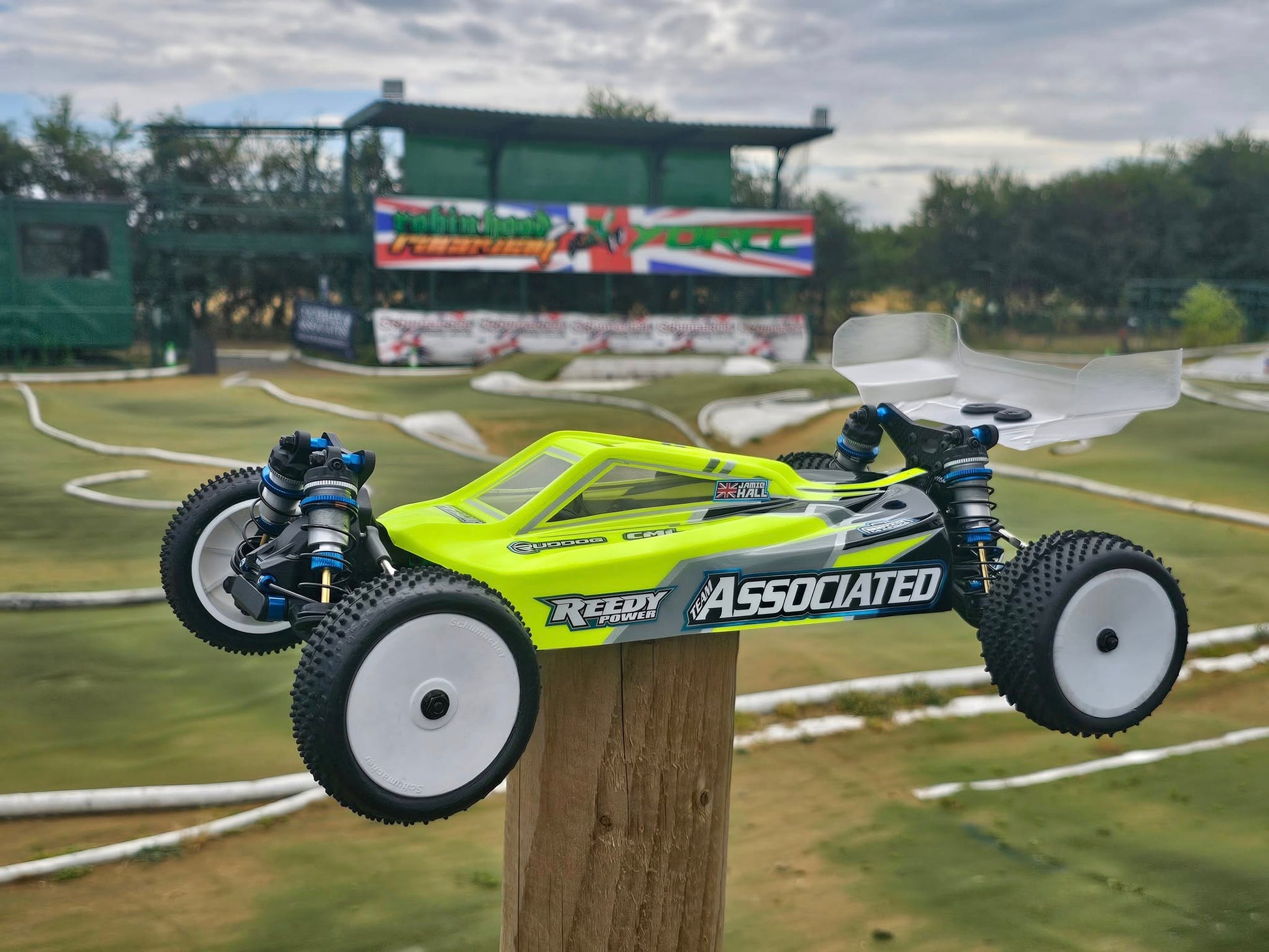

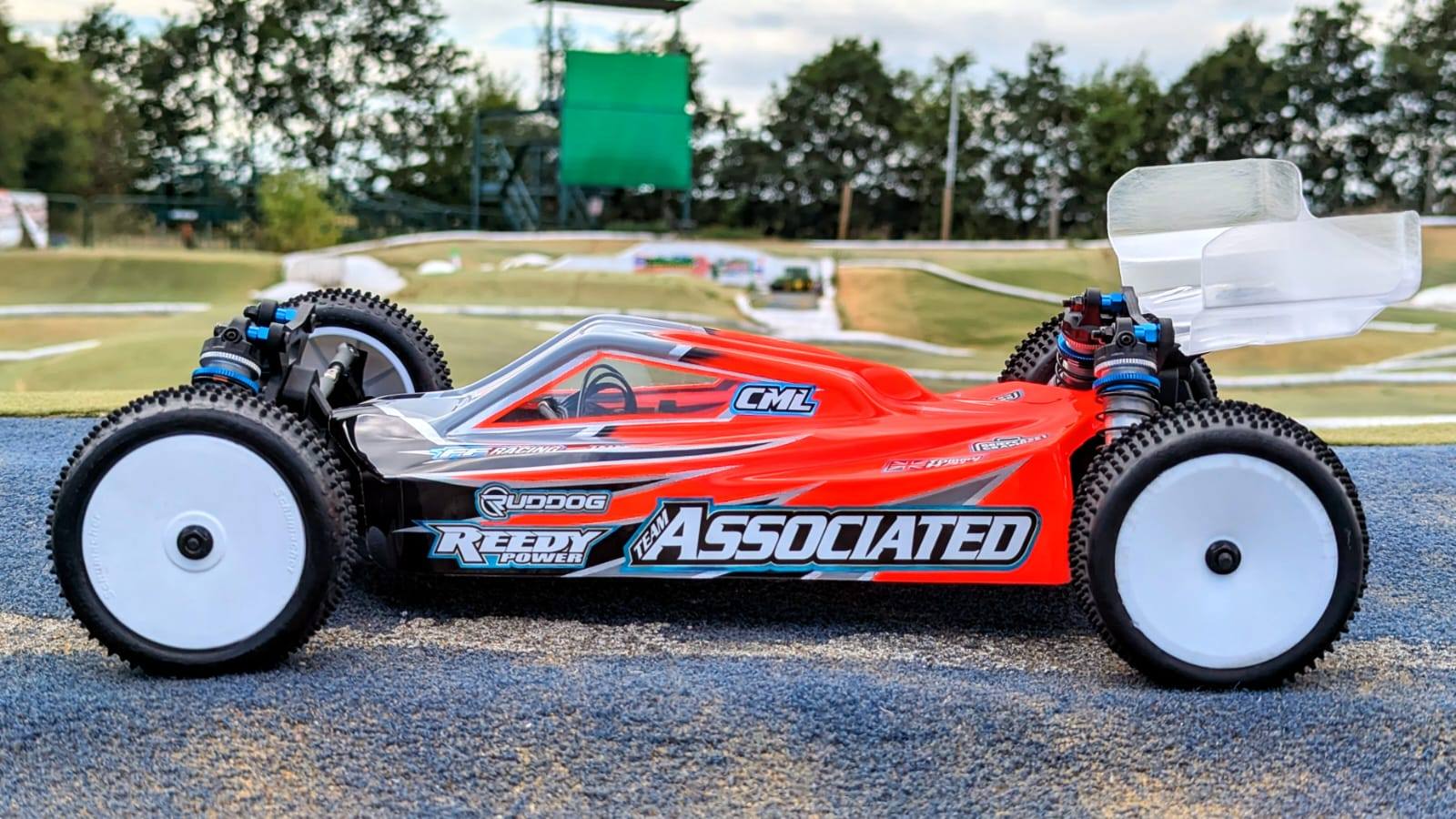

Team Associated B74.2 Pro Build

Our mission is to give you the opportunity to buy the exact kit we're running, giving you a dialled car capable of performing at the top level, from the first battery.

If you choose Carpet or Astro setup, our most used and recommended option parts for that very condition will be included in the build. We'll also set up your car to perform perfectly for the specified condition, using our countless hours of testing and race knowledge.

If you're not ready for the extras and just want a standard B7 built by us, choose the kit option.

Leave nothing to chance, get a kit you know won't hold you back!

If you would like electrics included, any adjustments to the recommended parts, or have any questions, get in touch on our contact us form.

Standard turnaround form order placement to delivery: 10 - 15 working days.

What you get:

With the carpet car:

Hall front tower

Hall rear tower

Hall steering plates

Hall rear gearbox riser

Upside-down shock standoffs

Yellow v2 rear spring

Red v2 front spring

Carbon front arms

Carbon rear arms

Carbon sideguards

7mm hexes

With the Astro car:

Hall front tower

Hall rear tower

Hall steering plates

Blue v3 rear spring

Orange v3 front spring

Front rollbar kit

Rear rollbar kit

7mm hexes

2 gear cross pin

Champions by Design

The B74 platform is the current IFMAR World Champion, European Champion, Australian Champion, British Champion, and more! Successfully competing at the highest level world-wide has given us the insight needed to push the B74 platform a bit more. With the addition of Factory Team items and setups, the NEW B74.2 and B74.2D Champions Edition kits are ready to add to the list of accolades!

The Champions Edition retains key features from its predecessor. The RC10B74.2 molded gearboxes front and rear lower the center of gravity by removing weight from high points of the car. The latest 13mm big bore shock technology from Team Associated keeps the RC10B74.2 at the highest level in jump and bump handling performance. The gull wing front suspension arms and the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

FEATURES

• NEW Factory Team decoupled slipper clutch and related parts included
• NEW Factory Team +2 steering block arms included
• NEW Updated kit setup includes 2.5mm thick shock pistons and purple front springs
• Lightweight molded gearboxes front and rear: Two fixed height front gearboxes allowing 0 and +2mm diff height options. One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options
• 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
• Gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability

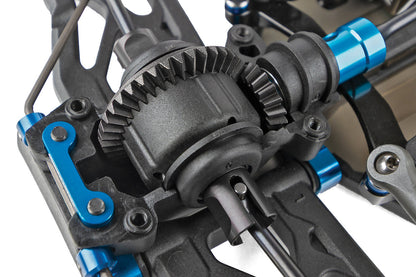

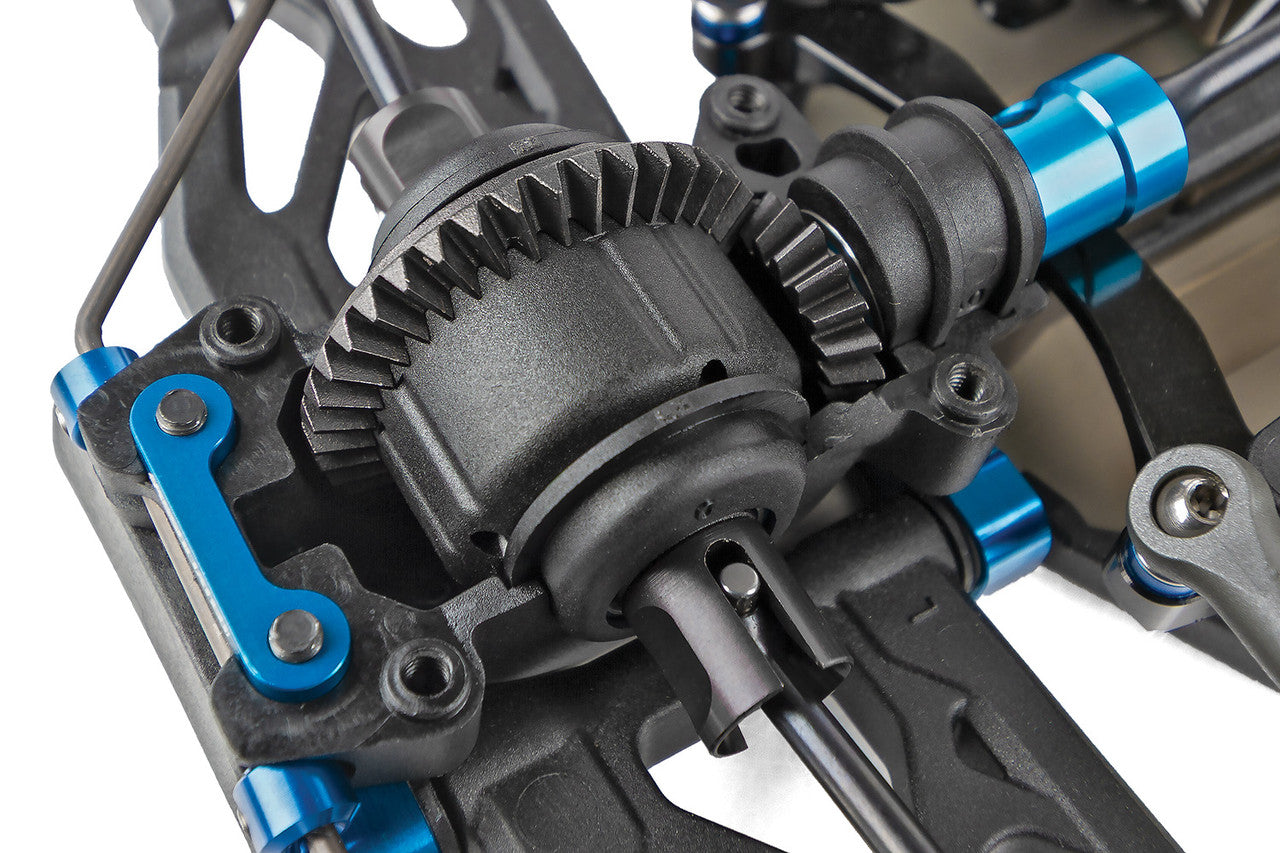

• LTC differential gear sets are included. That reduce binding under power, giving more predictable power delivery

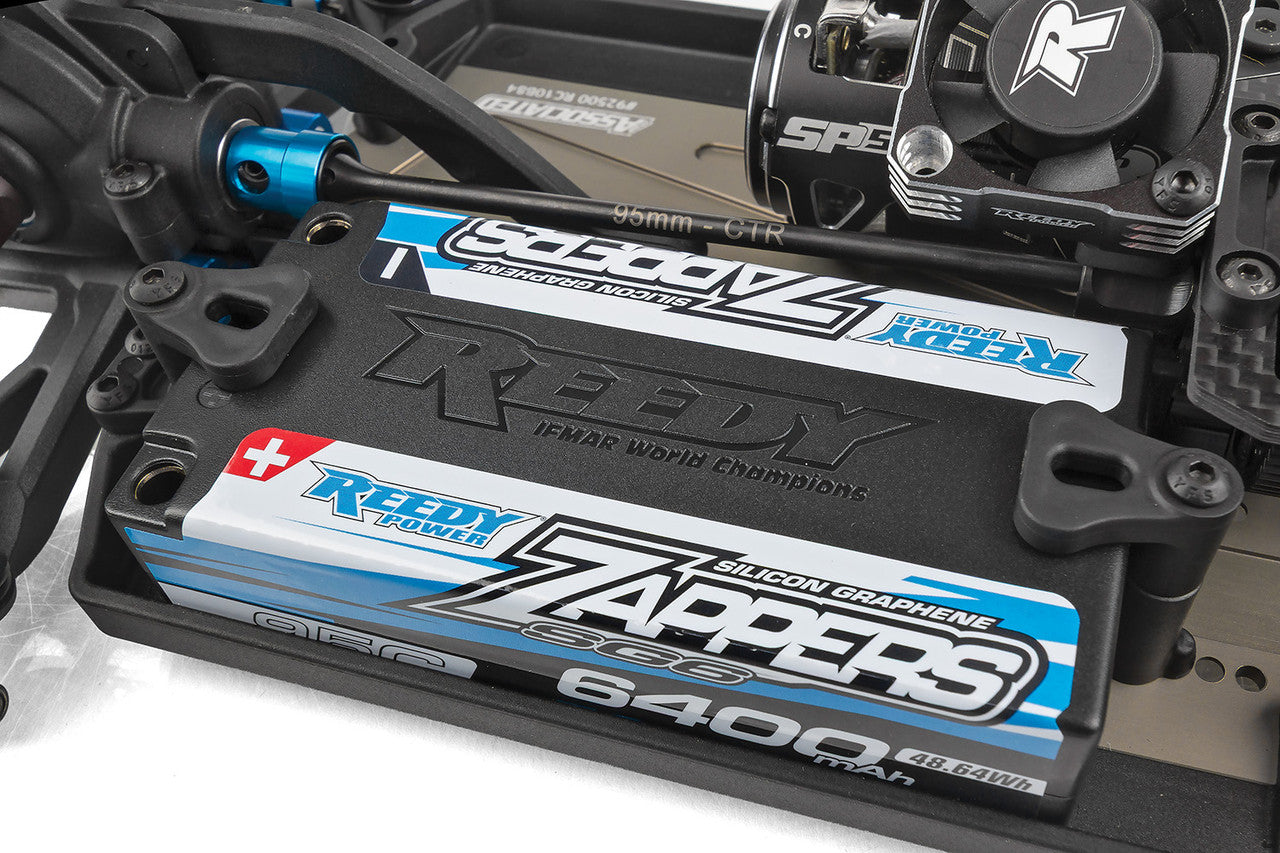

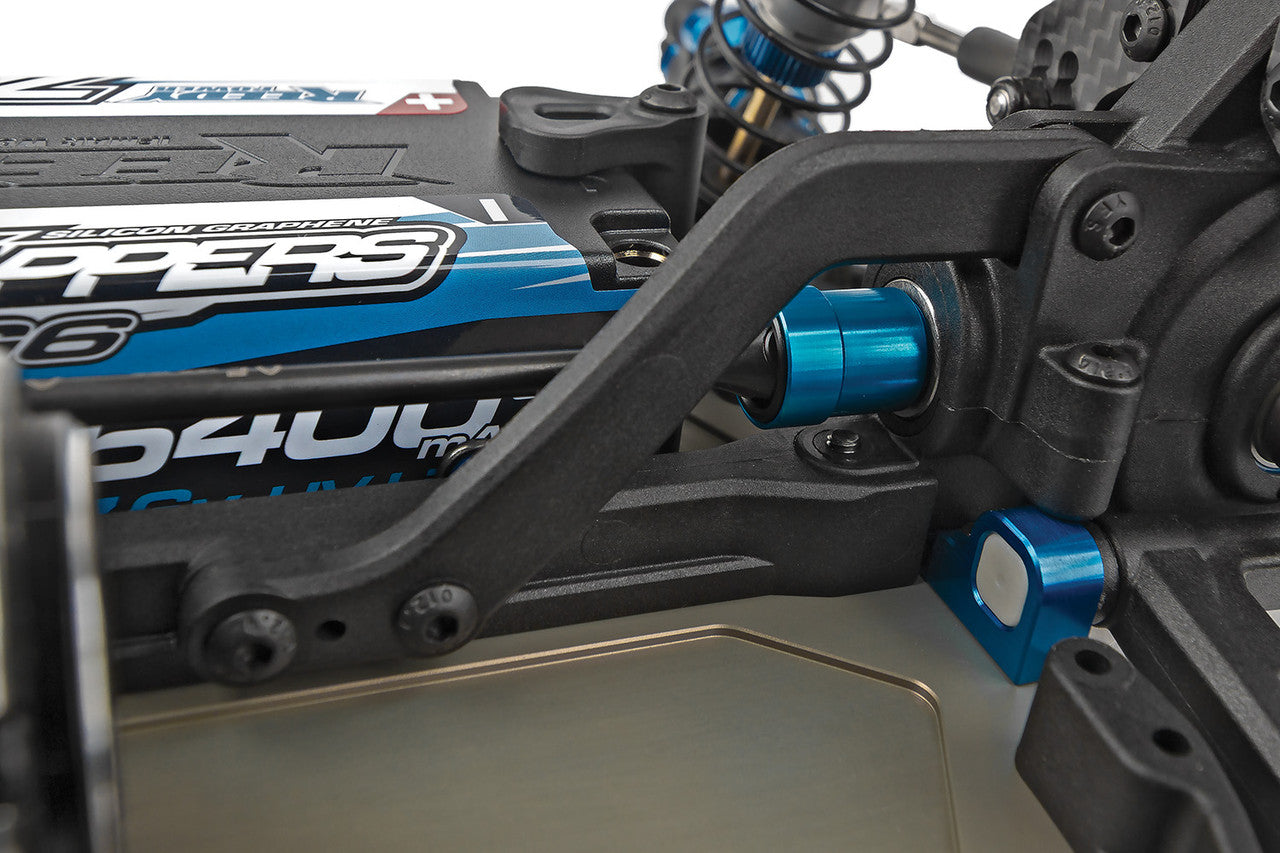

• Battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs
• Larger 3.5mm turnbuckles with updated rod end style ballcups to increase durability and reduce bind in the suspension
• Center bulkhead fan mount that mounts the fan above the motor for better cooling performance
• -2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity
• Next-generation 2-pad high-load, high-capacity center slipper clutch with LCF pad material

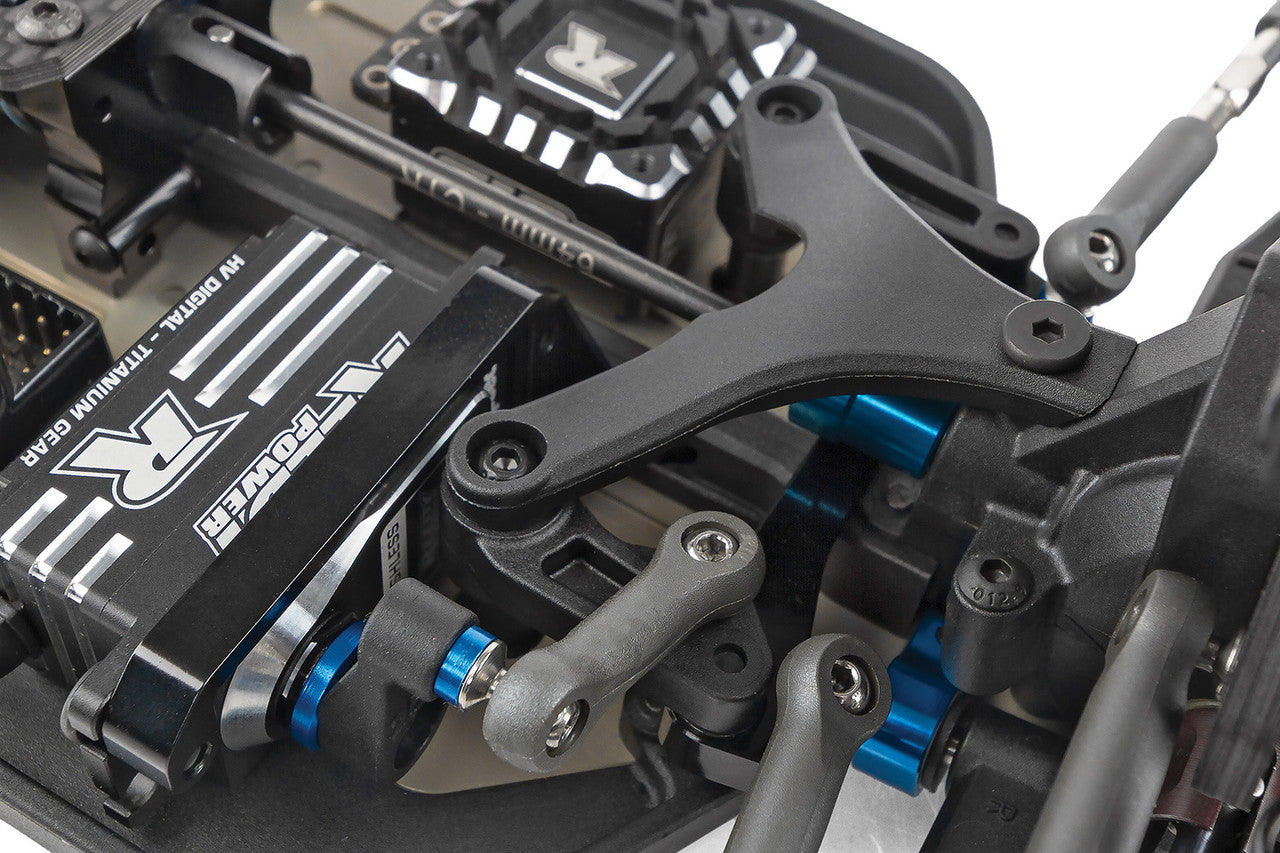

• +3mm aluminum steering rack for optimized bump steer at low ride heights

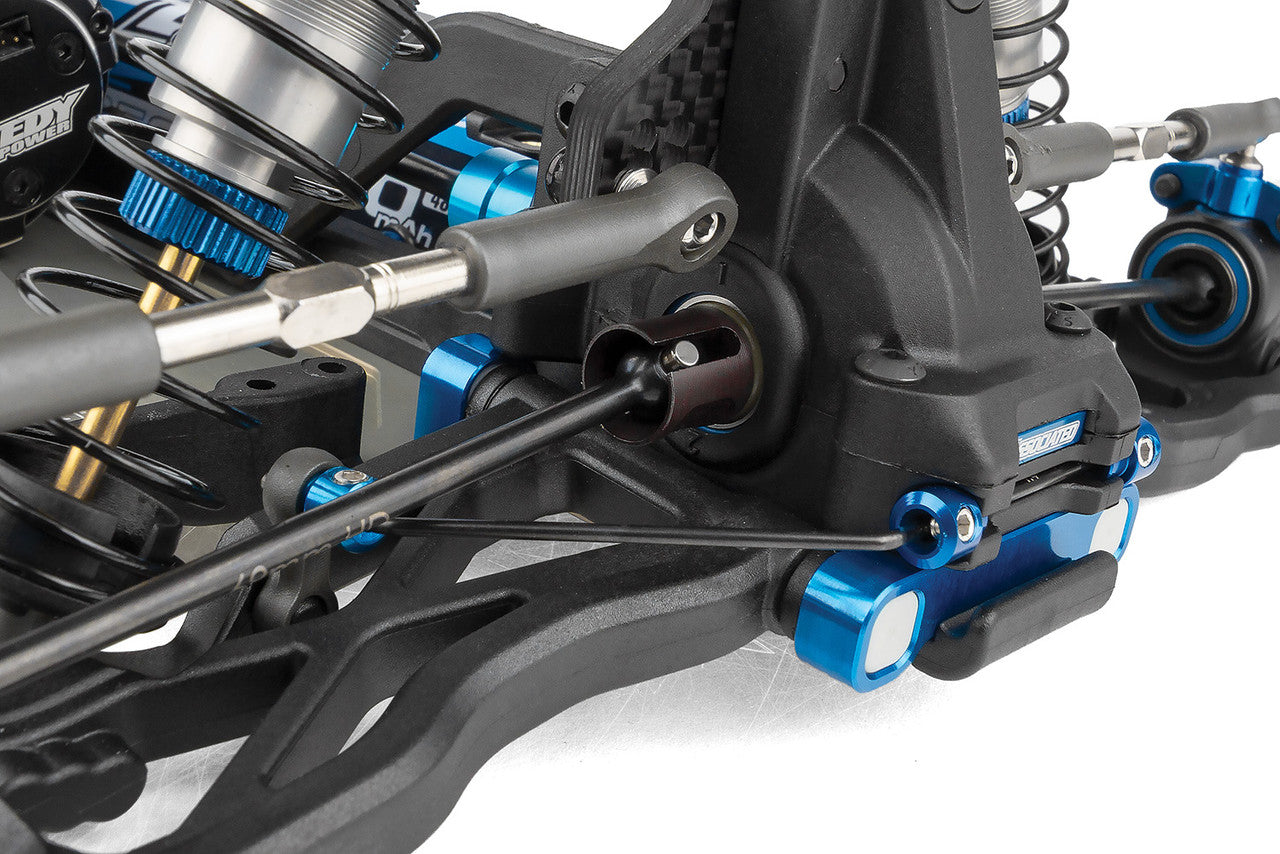

• 66mm Rear CVA drive shafts and axles for more on-power traction and more predictable driving feel

SPECIFICATIONS

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 395mm (15.55in)
Width: Varies
Wheelbase: Varies
Weight: 885g (1.95lbs)
Internal Gear Ratio: 2.50:1
Drive: 4WD

* This vehicle comes as a kit and must be fully assembled by the user (If pro build is not selected). Electronics and/or an engine/motor may be required if not selected in the customizer

REQUIRED TO COMPLETE

Included in customizer:

• 1:10 scale electric motor (Reedy S-Plus 13.5T AS27403)
• Electronic speed control (Reedy Blackbox 610R AS27016)
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (Reedy Zappers SG5 AS27383)
• Steering servo (Reedy RT2007A)

Not in customizer:

• Battery charger (for battery chosen above) (Reedy AS27203 1416-C2L Dual AC/DC Competition Balance Charger)
• 2-channel surface transmitter
• 2-channel receiver
• Lexan(TM)-specific spray paint for body
• 1:10 scale off-road buggy wheels and tires
• Batteries for transmitter
